AI has become an essential component of automated vehicle technologies. With its built-in high performance NVIDIA? Jetson AGX Orin? SOM, the ATC 3750-IP7-WI6CR can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference, supporting AI aided transportation applications such as railway safety assurance which can be collaborating with existing ATP/ATO.
Thanks to NEXCOM excellent thermal solutions, ATC 3750-IP7-WI6CR can working through its defined TDP (15W~60W) at the harsh environments without fan kit to achieve 200/275 TOPS workload performance.

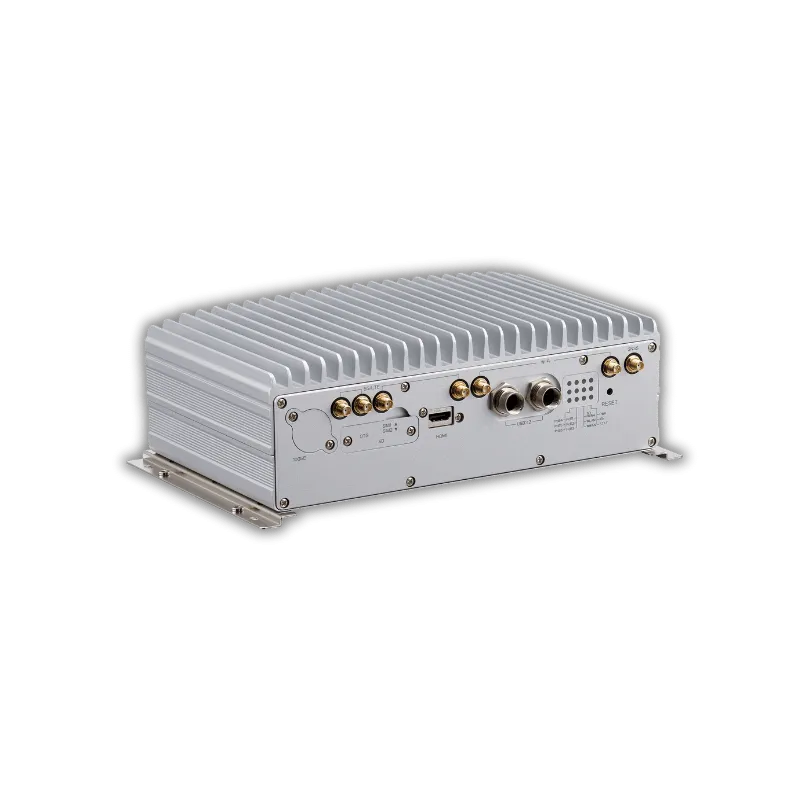

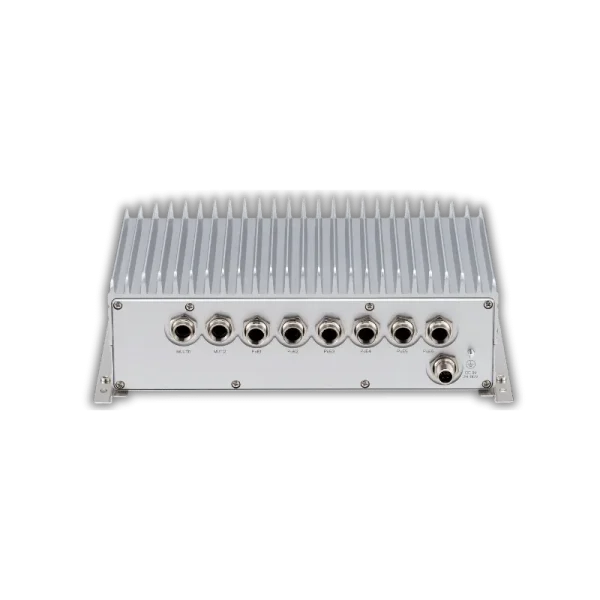

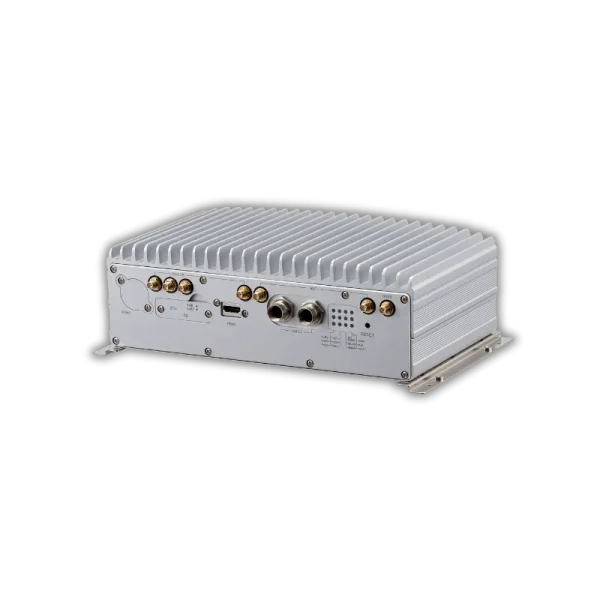

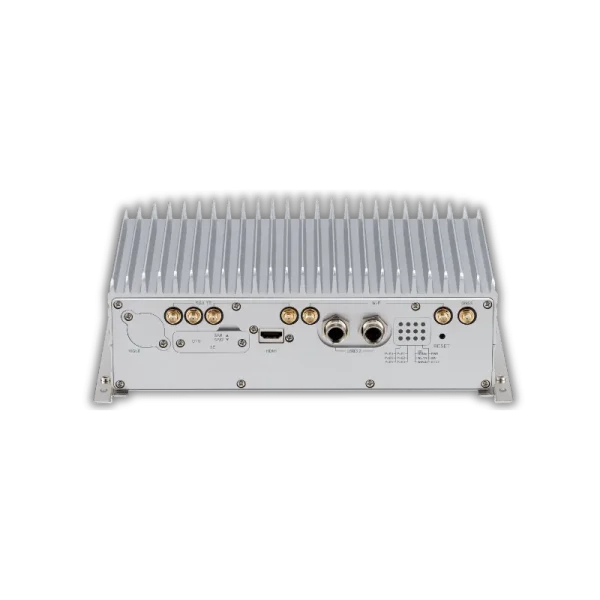

The ATC 3750-IP7-WI6CR is a IP67 rated, rugged, compact-size rail AI powered computer that features 24~110VDC with IGN control, 6 PoE+ and one optional 10GbE for accessing IP CAM/LiDAR sensors, and rich peripheral ports, USB 3.2, isolation CANBus, RS232, Console, DI/DO, OTG and HDMI. With the installation of 5G NR, Wi-Fi 5/6 modules, the ATC 3750-IP7-WI6CR can collaborate with CPS for AI model re-training, making it suitable for deployment sophisticated in railway/rolling stock applications. In harsh environments, the ATC 3750-IP7-WI6CR can operate at a wide temperature range of -25~70?C and meet the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750-IP7- WI6CR is certified by CE/FCC Class A, UKCA and EN50155/EN45545-2.
