Oring IES-3082GC 8FE + 2G Combo Managed Ethernet Switch Managed Switches
Description

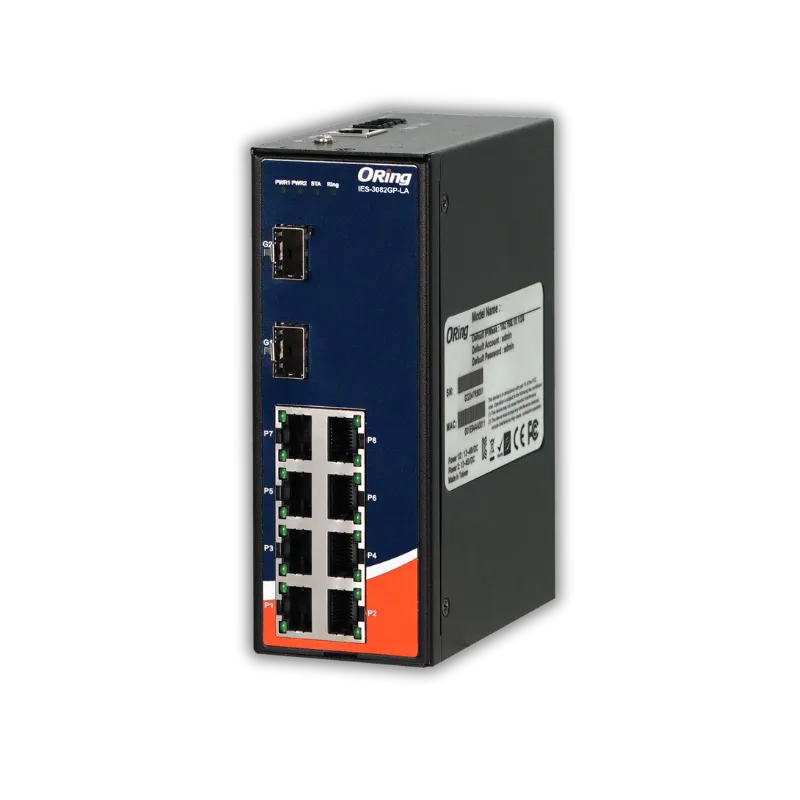

IES-3082GP-LA is a managed Redundant Ring Ethernet switch with 8×10/100Base-T(X) ports and 2×100/1000Base-X, SFP socket. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network. O-Chain allows multiple redundant network rings of different redundancy protocols to join and function as a larger, more robust compound network topology. O-Chain provides ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. In addition, the wide operating temperature range from -40 to 75 ?C can satisfy most operating environments. Therefore, the switch is one of the most reliable choices for highly managed Ethernet applications.
Features
World?s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
O-Chain allows multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
Supports IPV6 new Internet Protocol version
Supports Auto Negotiation Speed
Support Modbus TCP protocol
Provided HTTPS/SSH protocol to enhance network security
IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Supports ACL, TACACS+, and 802.1x User Authentication for security
Port Trunking for easy of bandwidth management
Event notification through Syslog server/client, Email and SNMP trap
RMON for traffic monitoring
Support LLDP protocol
Rigid IP-30 housing design
DIN-Rail mounting enabled
Web-based, Telnet and Console (CLI) configuration
