Oring IGPS-1042GP-24V 4GE PoE + 2G SFP Unmanaged Ethernet Switch, IEEE 802.3af/at, 24VDC Unmanaged Switches
Description

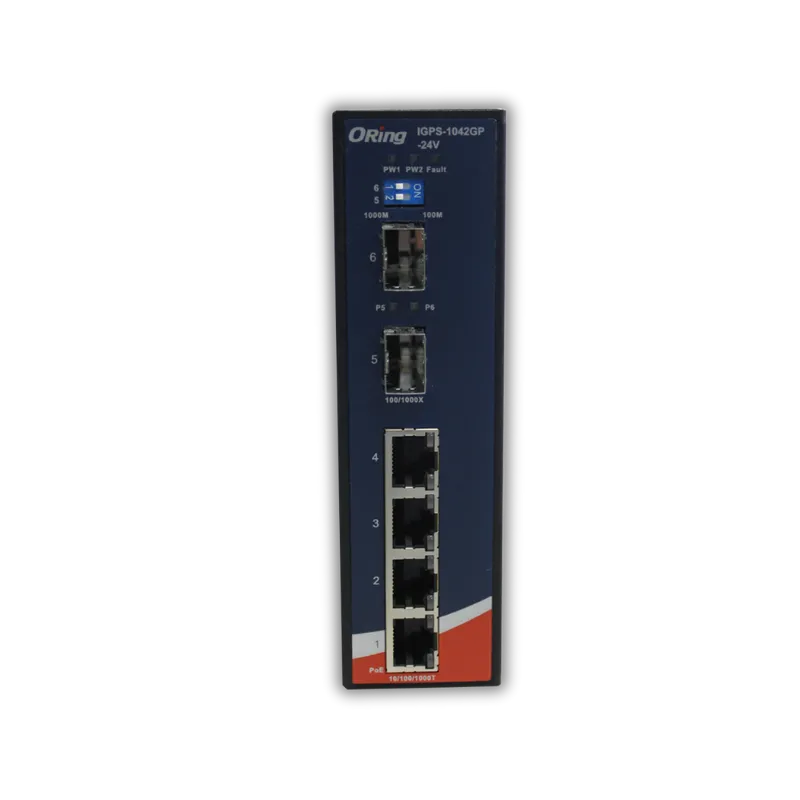

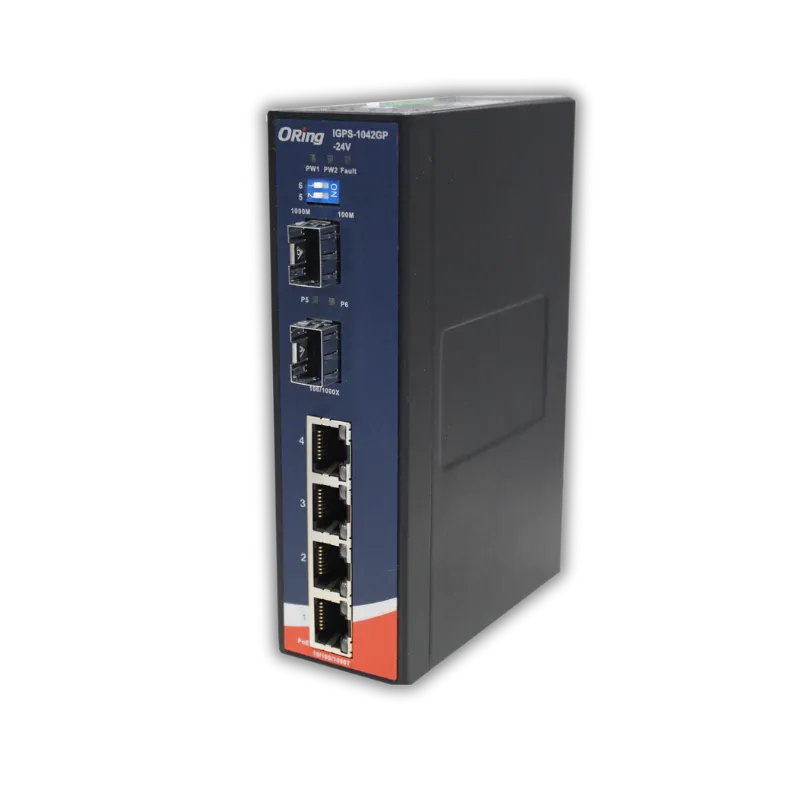

IGPS-1042GPA is a slim type unmanaged PoE switch with P.S.E. function. IGPS-1042GPA supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.
IGPS-1042GPA has 4x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x 100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GPA supports wide range 50~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40?C to 75?C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
Features
4x 10/100/1000Base-T(X) PoE ports and 2x 100/1000Base-X SFP socket
Supports P.S.E. based on IEEE 802.3at standard
Supports store and forward transmission
Supports flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Supports Jumbo Frame up to 10K Bytes
Description
IGPS-1042GPA is a slim type unmanaged PoE switch with P.S.E. function. IGPS-1042GPA supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.
IGPS-1042GPA has 4x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x 100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GPA supports wide range 50~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40?C to 75?C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
Features
4x 10/100/1000Base-T(X) PoE ports and 2x 100/1000Base-X SFP socket
Supports P.S.E. based on IEEE 802.3at standard
Supports store and forward transmission
Supports flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Supports Jumbo Frame up to 10K Bytes
