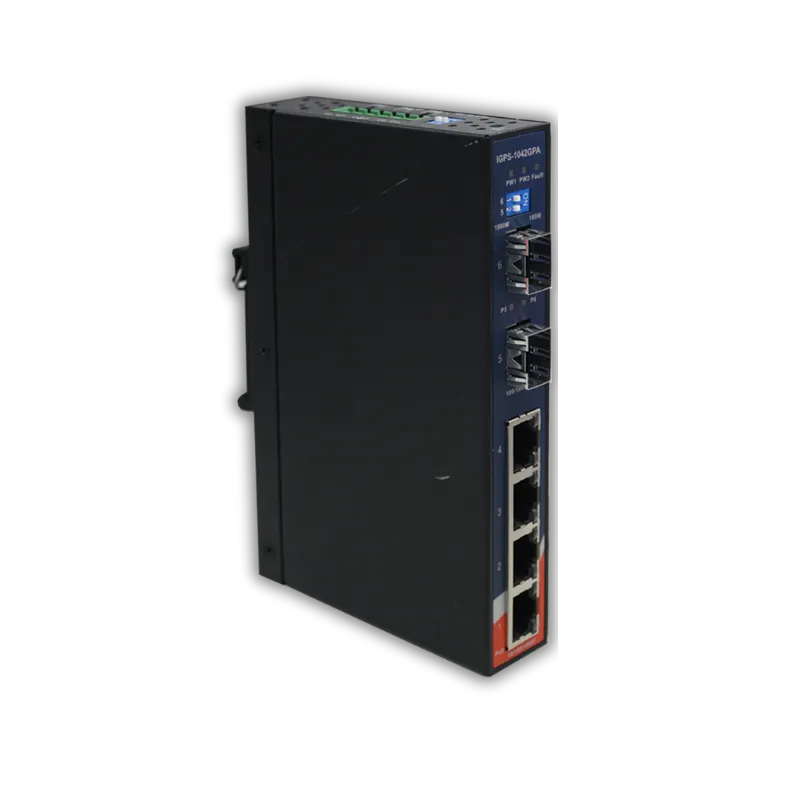

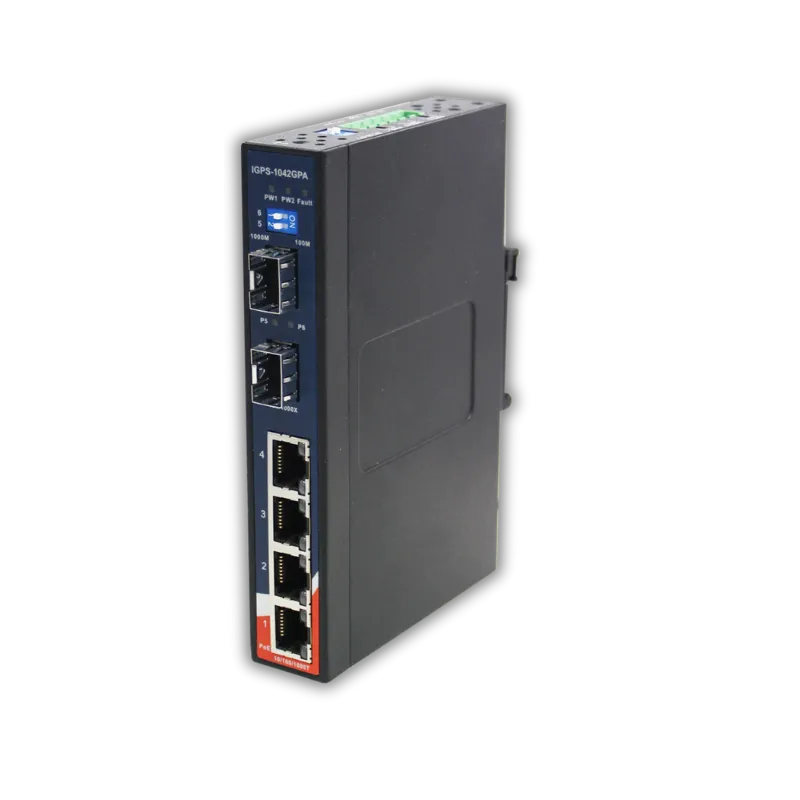

Oring IGPS-1042GPA 4GE PoE + 2G SFP Unmanaged Ethernet Switch, IEEE 802.3af/at Unmanaged Switches

Description
IGPS-1411GTP-24V is an unmanaged gigabit PoE switch with P.S.E. function. IGPS-1411GTP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1411GTP-24V has 4x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, 1 additional Gigabit port, and 1×100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP switch. IGPS-1411GTP-24V supports wide range 12~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device that will provide power in a PoE setup. The wide operating temperature range from -40?C to 75?C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

Features
4x 10/100/1000Base-T(X) PoE ports, 1x 10/100/1000Base-T(X) and 1x 1000Base-X SFP socket
Supports P.S.E. based on IEEE 802.3at standard
Supports Jumbo frame up to 10KBytes
Supports auto-negotiation and auto-MDI/MDI-X
Supports store and forward transmission
Supports dual 12-57VDC power inputs
Supports flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
