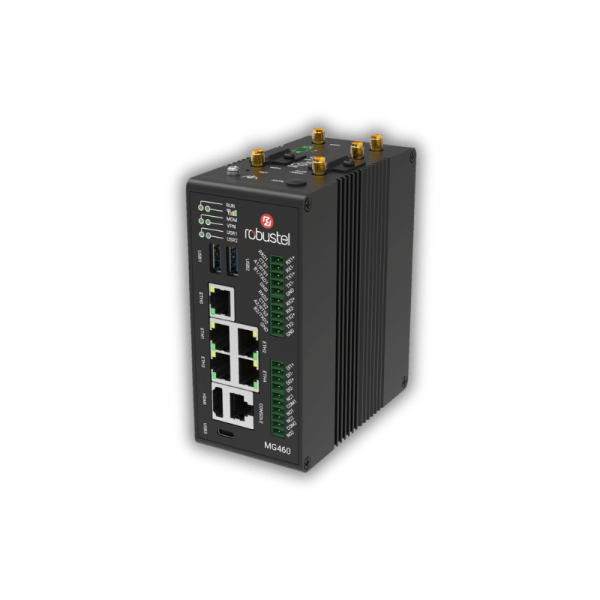

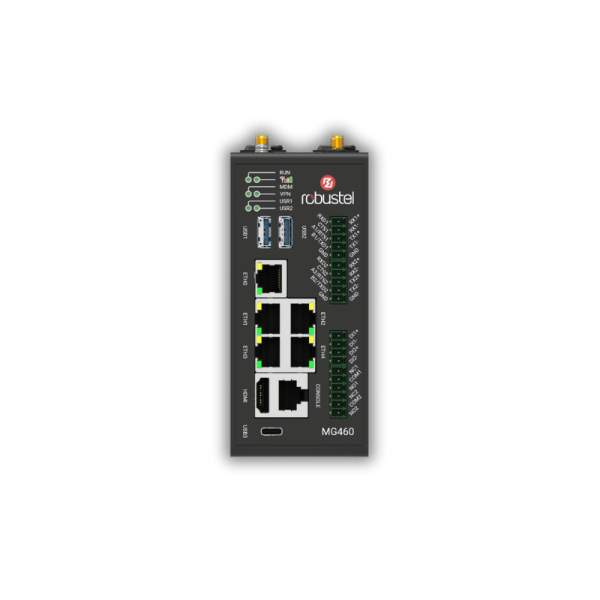

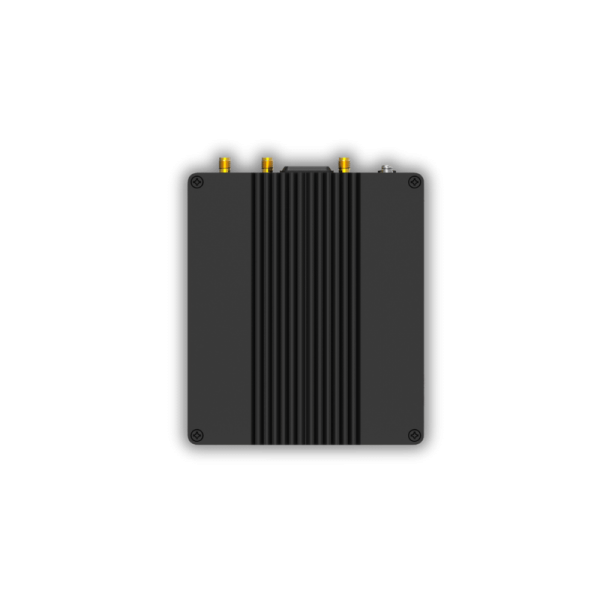

Robustel?s MG460 Gateway represents a next-generation industrial maritime gateway, designed to comply with IEC 61162-460 (Maritime Safety and Security) and IEC 60945 standards. The MG460 Gateway serves as a seamless interface between onboard vessel equipment and external services, including cloud platforms and servers.
The MG460 Gateway enhances the security of the navigational equipment network by implementing a multi-layered inspection firewall and access control at both the network and transport layers, utilizing address, port, and protocol-based rules. Powered by a robust 1.6 GHz quad-core CPU and equipped with 64 GB eMMC Flash storage running a Debian Linux OS, the MG460 Gateway is capable of executing complex applications and facilitating efficient software deployment. Featuring 5 Gigabit Ethernet ports (each equipped with its own firewall), 2 software-configurable serial ports, 2 digital inputs, 2 relay outputs, and 3 protected USB ports, the MG460 Gateway provides comprehensive connectivity options for various field devices.
KEY FEATURES
Comply with IEC 61162-1, IEC 61162-2, IEC 61162-460 Edition 3, and IEC 60945 standards
Achieve DNV Certification as 460-Gateway and 460-Wireless Gateway
Utilize a high-performance compute engine with a 1.6 GHz CPU and 64 GB eMMC Flash for executing complex applications
Establish a DMZ with file storage and application services for secure interconnection
Enable remote access tunnels with VPN for secure connectivity
Leverage a Linux Debian system for user software development and deployment
Provide 5 x 1000 Mbps Ethernet ports, each with an individual firewall for enhanced security
Connect industrial and legacy devices via 2 x RS-232/RS-485/RS-422 (software configurable) ports
Facilitate simple monit and control with 2 x Digital Inputs and 2 x Relay Outputs
Expand storage capabilities with a microSD slot for recording system logs and navigation data
Support dual SIM card slots for redundant communications
Ensure uninterrupted network connectivity with an industrial-grade design
Manage large device estates efficiently via RCMS (Robustel?s router/gateway management platform) and RobustVPN service
